Custom Drains

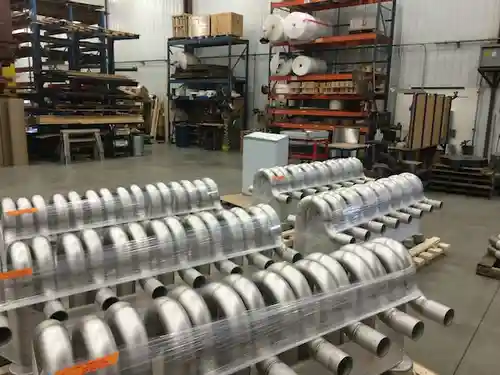

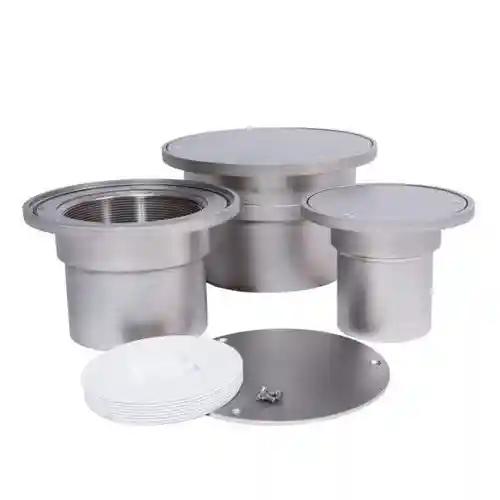

A complete line of drainage systems:  Area Floor Drains - Stainless Trench Drains - Clean Outs - Stainless P-Traps - Accessories

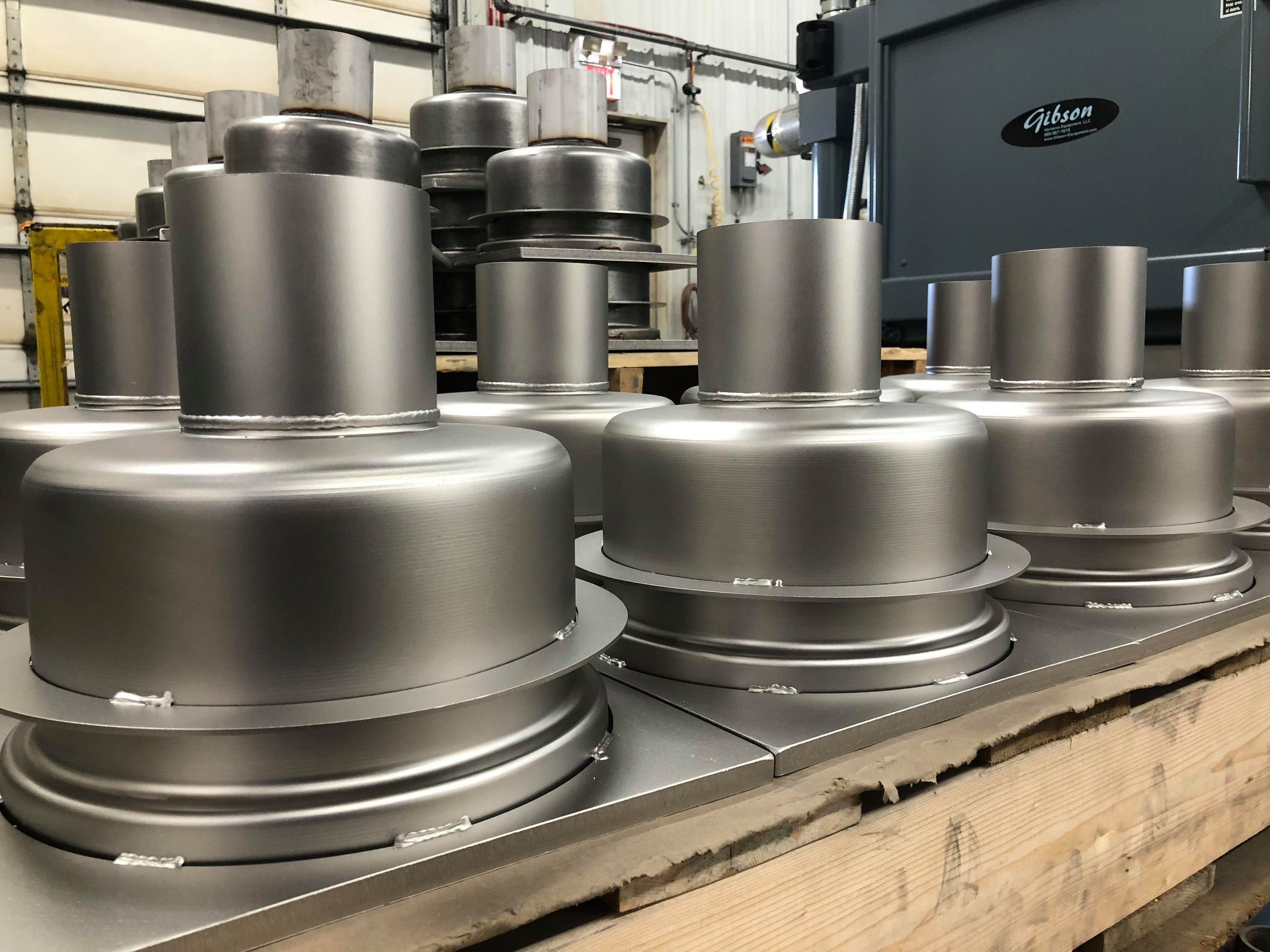

bullet12 GA. single piece, seamless construction on body
bulletT-304 stainless construction
bulletRated for heavy equipment use– 10,000#
bulletStandard size 4” Sch-10 outlet
bulletOther outlet sizes available (2”, 3”, 6" & 8”)
bulletGlass bead finish
bulletOuter cement ring

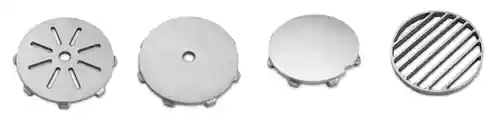

Stainless Drains - Industrial, Commerical, Custom Stainless Drain CoverRound Drains made of Stainless Steel

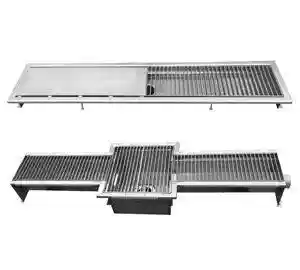

Trench Drain System Designs - Stainless Slot Trench Drain and Open Trough Trench Drain:

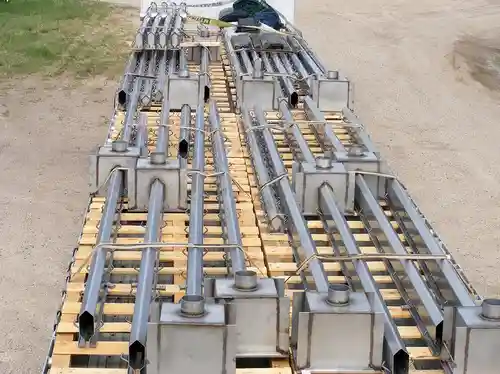

Stainless Steel Slot Drain - Narrow Slot Trench
Slot Trench - read more
Open Trough Trench - Stainless Steel
Open Trough - read more

Our Stainless Floor Drains are Widely Used In:
Food Processing Plants where there is exposure to animal or vegetable fats and acids. Ideal for: mills, slaughter and packing houses, dairies, breweries and citrus juice plants. As well as, hospitals, laboratories, pharmaceutical, chemical plants, wineries, breweries, and many other industrial plant applications.

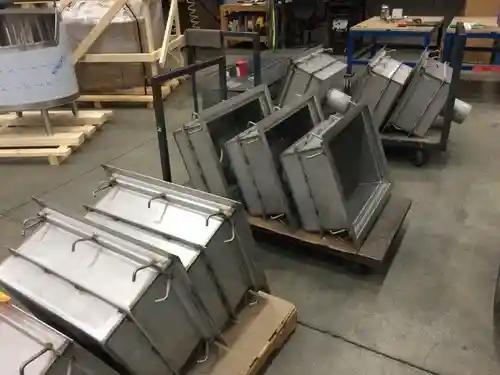

Extra Heavy Duty Floor Sink (Drain) with standard features:
Heavy Duty Stainless Industrial Plant Drain with Trap

bulletIntegral-trap provides water seals to prevent sewer gas odors - No P-trap required
bulletSingle piece, removable, 1/2" thick SS grate heavy-duty rated for forklift traffic
bullet"Easy clean", 4" removable plug with gasket for access to drain piping after trap
bulletRemovable, lift-out basket provides simple clean out
bullet4" discharge for pipe connection
bullet304 SS construction

Why Choose Stainless Steel When You Spec Drains?

bulletNo bacteria problems as in porous concrete or cracked polymer types
bulletUniform quality
bulletLifetime of value
bulletCustom or standard sizes available
bulletEasy to clean
bulletNo maintenance
bulletNo cracks
bulletNo erosion
bulletNo joints to caulk
bulletFiberglass and galvanized drain gratings are standard (Optional covers: stainless steel or cast iron)


Stainless steel drains are recognized as safe for food processing worldwide. Our trained personnel can help at your request, or your in-house maintenance personnel can install the system with our easy-to-use instructions.

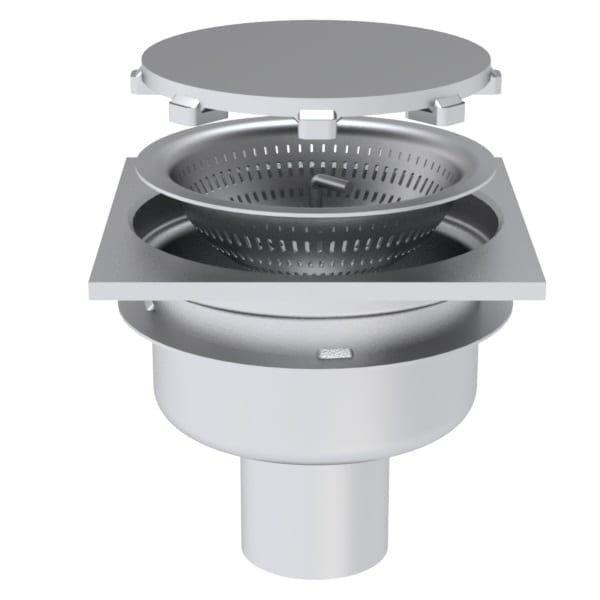

INNOVATIVE Floor Drain with Flushable Water Bacteria SealDrain Body - Flushable Water Bacteria Seal

bulletBlocks airborne Listeria
bulletRemovable strainer basket
bulletUSDA sanitary standards
bullet304 stainless steel housing and grate
(316 Optional, eliminates any oxidation)
bulletPatent pending

Bacteria Water Seal - Stainless Bar Grate

Housing is constructed of 12 ga. 304 stainless steel. Grate frame is 7 ga. 304 stainless steel. Optional 316 stainless steel bar grate isStainless Steel Floor Drain - Bacteria Free of Listeria shown. Fiber grate is standard.

The standard box drain is pictured. However, box drains can be custom fabricated to your specifications. Also, some food processing equipment can be custom fabricated.

Call or email us for information and pricing on our Box Drains....
